“Technical parameters:

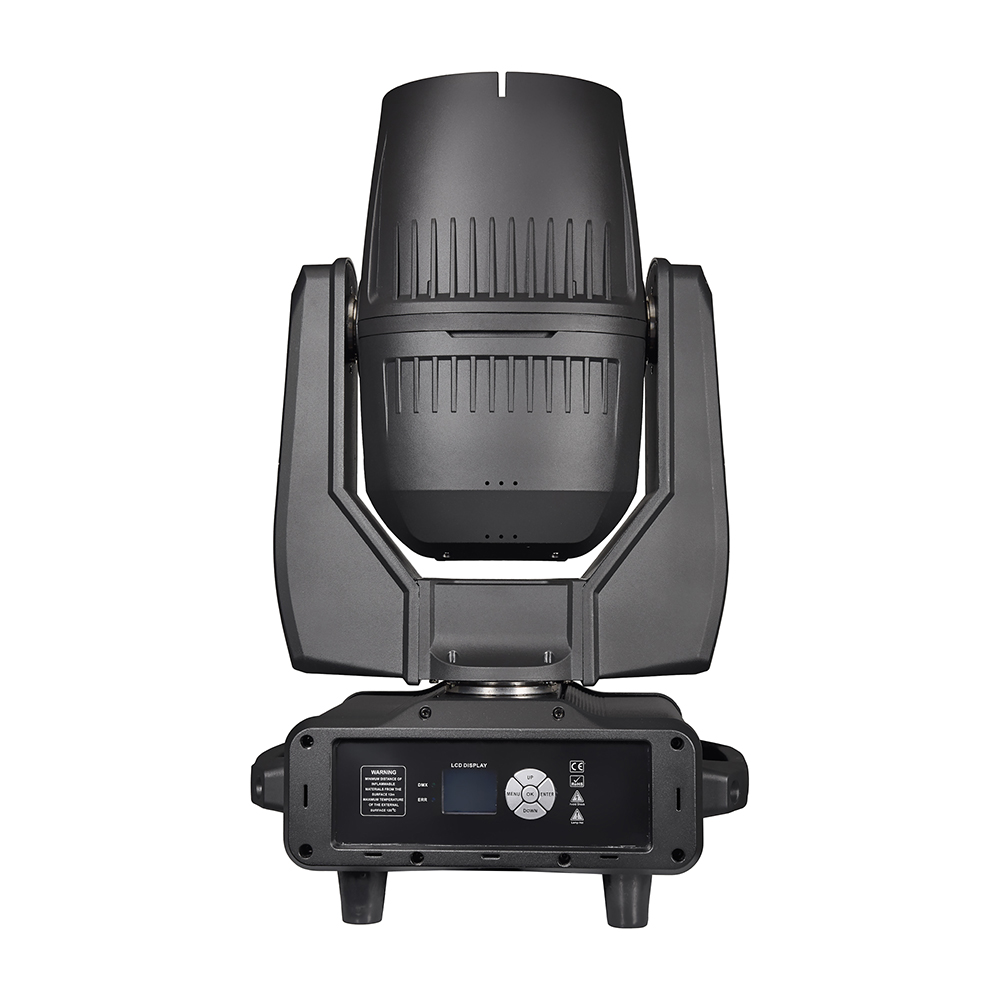

This outdoor mini waterproof beam light adopts a lightweight design, weighing only 1/3 of traditional lights, greatly reducing the burden of handling and installation. No matter how it is installed, it can be easily handled, making your performance more flexible. The unique waterproof structure design is suitable for various outdoor environments.
The latest motherboard program: supports RDM function, built-in program: built-in multiple effect programs, which can realize single beam white left and right slow swing, single beam color change left and right slow swing and multi-beam color change left and right slow swing.
Voltage: wide voltage 110V-240V 50-60Hz
Light source: 380W Power: 480W
Color: Color plate: 13+1+ colorful rainbow effect+atomization function
Pattern: Pattern plate: 13 fixed patterns+1 white light
Focus: electronic linear high-definition dynamic focus , using high-density glass optical lens.
Linear dimming curve: 0%-100% linear dimming
Beam angle: 1.8°
Channels: 16/20 international standard DMX512 channels.
XY motor: three-phase electric drive, powerful, faster, more stable, and quieter
Control mode: DMX 512, self-propelled, master-slave self-propelled
Prism: 8 prisms + 8 + 16 prisms superimposed and rotatable, macro function
Fan drive performance is excellent and noise is extremely low.
Control mode: DMX 512, self-propelled, master-slave self-propelled
Display: LCD display adapts to different installation positions
Horizontal/vertical: The waterproof lamp can do 540° horizontal or 270° vertical scanning, fast and stable,
The lamp is equipped with an intelligent photoelectric reset correction system, which can automatically return to the original position if it malfunctions accidentally. In addition, it has a horizontal and vertical locking button, which is more convenient for maintenance and transportation.
Cooling system:
Using CFD The software analyzes and calculates the heat flow of the lamp and designs a low-noise cooling system.
The fan drive has excellent performance and extremely low noise.
Waterproof level: IP65
Net weight: 18Kg Dimensions: 353x355x570mm
Appearance: The lamp is made of full die-casting + high-strength engineering nylon plastic, anti-UV treatment, high temperature resistance, anti-aging, lightweight, wind direction diversion and temperature intelligent monitoring technology, fast heat dissipation!
Features: No weakness, small appearance, huge energy, thick light column
The waterproof beam lamp has reached the high standards in the industry in terms of optics, structure, appearance, etc. It uses advanced technology, high-brightness light source, optical technology and rigorous industrial design to ensure the perfect presentation of lighting design. ”
